INFINIT AIRCO MIXGAS® - GAS MIXER

FOR THE IMPROVEMENT OF CUTTING QUALITY

The INFINIT AIRCO MIXGAS® enables you to achieve efficient and optimal cutting results with thick sheets and to increase the productivity of your laser. Our intelligent INFINIT AIRCO MIXGAS® gas mixer now allows you to adapt cutting quality to your specific requirements.

Mixgas Gas Mixer

ADVANTAGES OF INFINIT AIRCO MIXGAS®

  • Performance range from 20 to125 Nm3 / h, at 20 – 35 bar operating pressure

  • Continuous mixture adjustment with the proportional mixing valve

  • Individually adjustable purity with intelligent flow control

  • Intelligent control and communication with your laser

  • Intuitive operation of the control user interface

  • High process reliability

INFINIT AIRCO MIXGAS® HIGHLIGHTS

  • Superior cutting results, due in particular to reduced burrs with medium and thicker material (25 – 66%)

  • Decreased need for reworking owing to reduced burrs

  • Increased productivity thanks to faster cutting speed (10 – 20 %)

OPTIONAL MODULES

  • Control system for the AIRCO® PSAL® - systems
    with integrated remote monitoring possible

  • Display of the residual oxygen content in the mixed gass possible

INFINIT AIRCO MIXGAS®

EXPERIENCE THE AWARD WINNE

TECHNICAL SPECIFICATIONS



Type:
INFINIT AIRCO MIXGAS®

Gases:
Nitrogen and oxygen (not suitable for combustible and liquid gases)

Mixing range:
0% – 25 % oxygen content

Power supply:
230 V / 50-60 Hz

Dynamic input pressure difference between gases:
2 bar – 3 bar

Guide values for setting the static input pressure difference can be found in the table in the technical specifications.

CE MARKINGS AND STANDARDS IN ACCORDANCE WITH PRESSURE EQUIPMENT DIRECTIVE 2014/68/EU:
EMV 2014/30/EU
Low voltage directive 2014/35/EU
Switchgear standard DIN EN 61493-1
VDE 0660/600

Alar mmodule:
Input pressure monitoring with integrated display and alarm function
Adjustable alarm limits
Acknowledgment is required
Securing of the alarms with time specification
Integrated analysis for monitoring purposes
and documentation of the gas mixture

Accessories - Infinit-Connect Kit:
Plug and play laser connection set for the gas supply: N2, O2, mixed gas, compressed air.

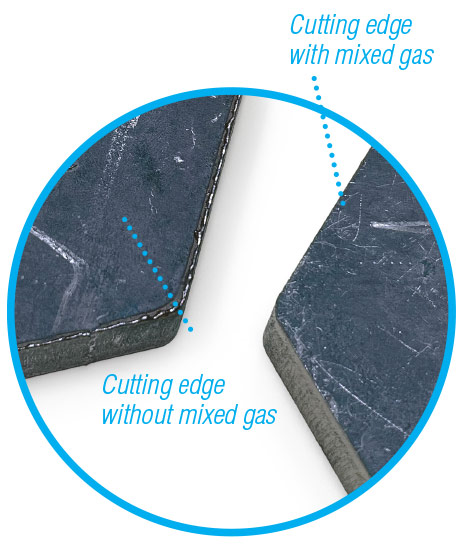

Cutting quality with and without mix gas
